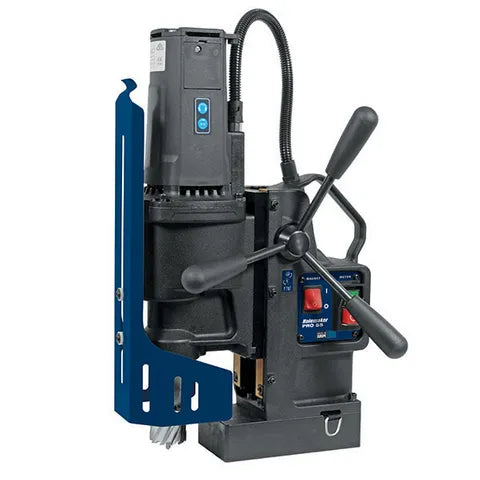

HOLEMAKER PRO55 MAGNETIC BASE DRILL, CAP: 55MM DIA X 75MM HMPRO55

HOLEMAKER PRO55 MAGNETIC BASE DRILL, CAP: 55MM DIA X 75MM HMPRO55

HMPRO55

$2,599.00 AUD
$2,799.00 AUD $2,599.00 AUD
Sold out
people viewing this right now
Taxes included. Shipping calculated at checkout.

Features

New generation machines with the latest technology and design.
  • New Rigid Frame Design
    Provides increased life of cutting tools.

  • New Extra Large 165mm Stroke
    Enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel in one pass, twist drills, reamers, taps etc.

  • Magnetic Field Shape Control (MFSC)
    Provides maximum holding power on thin materials.

  • Lightweight & Powerful
    The new generation Holemaker machines are lighter and more powerful than other brands on the market.


Features:
  • European made machine
  • Extra large 165mm stroke allowing the use of an optional 13mm twist drill chuck
  • Industrial 2-speed gearbox
  • Through spindle coolant system, with an external side mounted gravity feed coolant tank
  • The feed handles can be placed on either the left or right hand side, for increased versatility
  • Smart magnet technology to ensure sufficient magnetic adhesion
  • Integrated cutter guard for increased user safety
  • Supplied in a blow mould plastic carry case
  • Grub screw arbor system, which fastens positively onto Holemaker cutters
  • 13mm drill chuck SADCA-13 available separately

Specifications

  • Capacity (Diameter): 55mm
  • Capacity (Depth): 75mm
  • Capacity (Twist Drills): 18mm
  • Motor Power: 1100 Watt
  • Input Power: 1200 Watt Single Phase 240V
  • Speed: 2 Speed 200 / 400rpm
  • Weight: 15.5kg
  • Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate
  • Stroke: 165mm

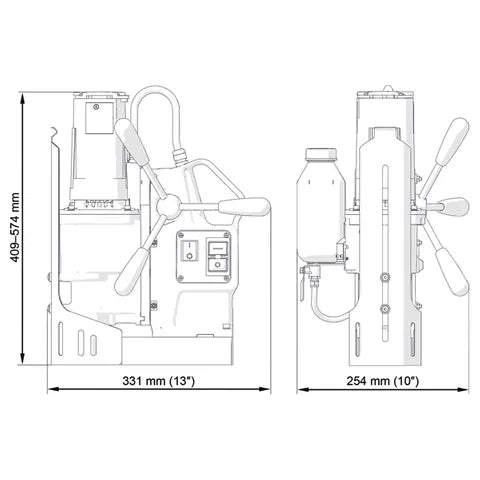

  • Height (Min. / Max.): 409 / 574mm
