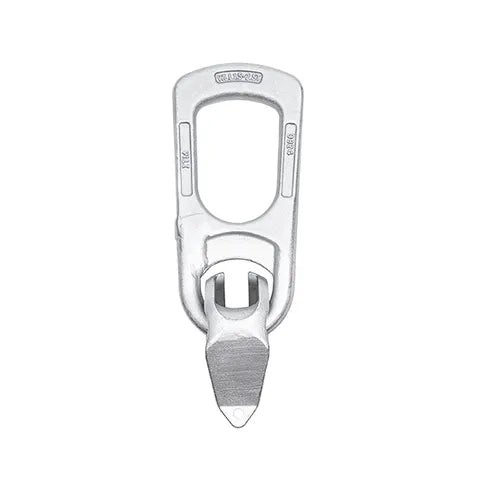

ITM 2.5T Panel Lifter Concrete Lifting Clutch TM9814-00025

ITM CONCRETE LIFTING CLUTCH, PANEL LIFTER, 2.5T

• Specifically designed for lifting precast concrete elements with an embedded pin
• Easily engages under load, ensuring proper connection
• Simple clutch release when lifting completed
• Available in working load limits ranging from 1.3t to 20t
• Tested and certified to AS 3850.1

• W.L.L. (t): 2.5
• B.L. (t): 10

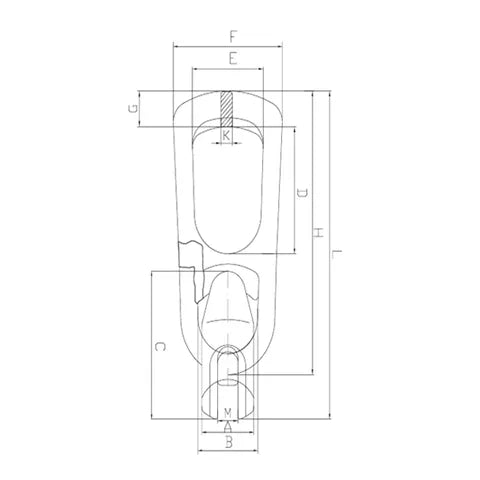

• Dimension A (mm): 41
• Dimension B (mm): 49
• Dimension C (mm): 102
• Dimension D (mm): 85
• Dimension E (mm): 57
• Dimension F (mm): 88
• Dimension H (mm): 188
• Dimension M (mm): 16
• Dimension L (mm): 227
• Dimension G (mm): 27
• Dimension K (mm): 14
• Weight (kg): 1.3
