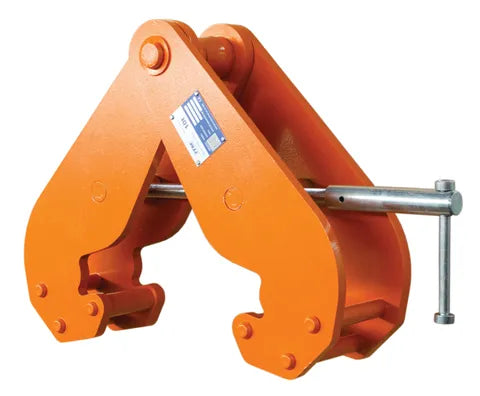

ITM BEAM CLAMP, 10 TONNE, 320MM BEAM WIDTH

ITM BEAM CLAMP, 10 TONNE, 320MM BEAM WIDTH

$263.20 AUD
$329.00 AUD $263.20 AUD
Sold out
Taxes included. Shipping calculated at checkout.

Features

  • 1000kg Rated capacity
  • Violet colour coded to W.L.L. for safety
  • Beam width to suit 75 - 230mm
  • Durable all steel construction
  • Colour coded to WLL for safety
  • Tested & certified to AS 4991

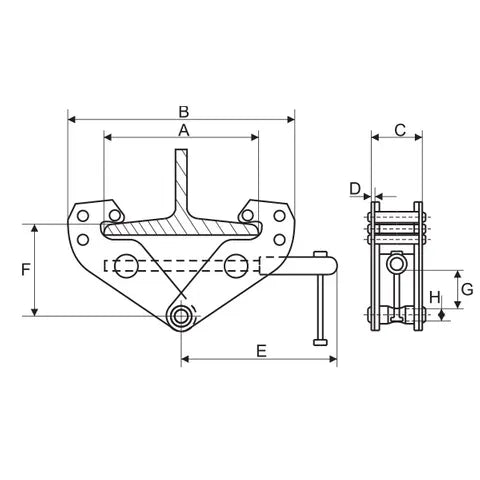

Specifications

  • Weight: 3.6kg
  • Dimension A (max): 278mm
  • Dimension B (min): 182mm
  • Dimension B (max): 380mm
  • Dimension C: 64mm
  • Dimension D: 4mm
  • Dimension E: 217mm
  • Dimension F (min): 90mm
  • Dimension F (max): 150mm
  • Dimension G: 26mm
  • Dimension H: 19mm
