KLEIN Advanced Circuit Tracer Test Kit A-ET450AU

Klein A-ET450AU Advanced Circuit Tracer Kit

The Klein Tools ET450 Advanced Circuit Tracer Kit is a professional tracer for energized and non-energized breakers, fuses, and wires. When the Transmitter is connected to a circuit, the Receiver’s sensitivity can easily be adjusted to detect the transmitted signal on breakers, fuses, and wire through drywall, cement block, and underground.

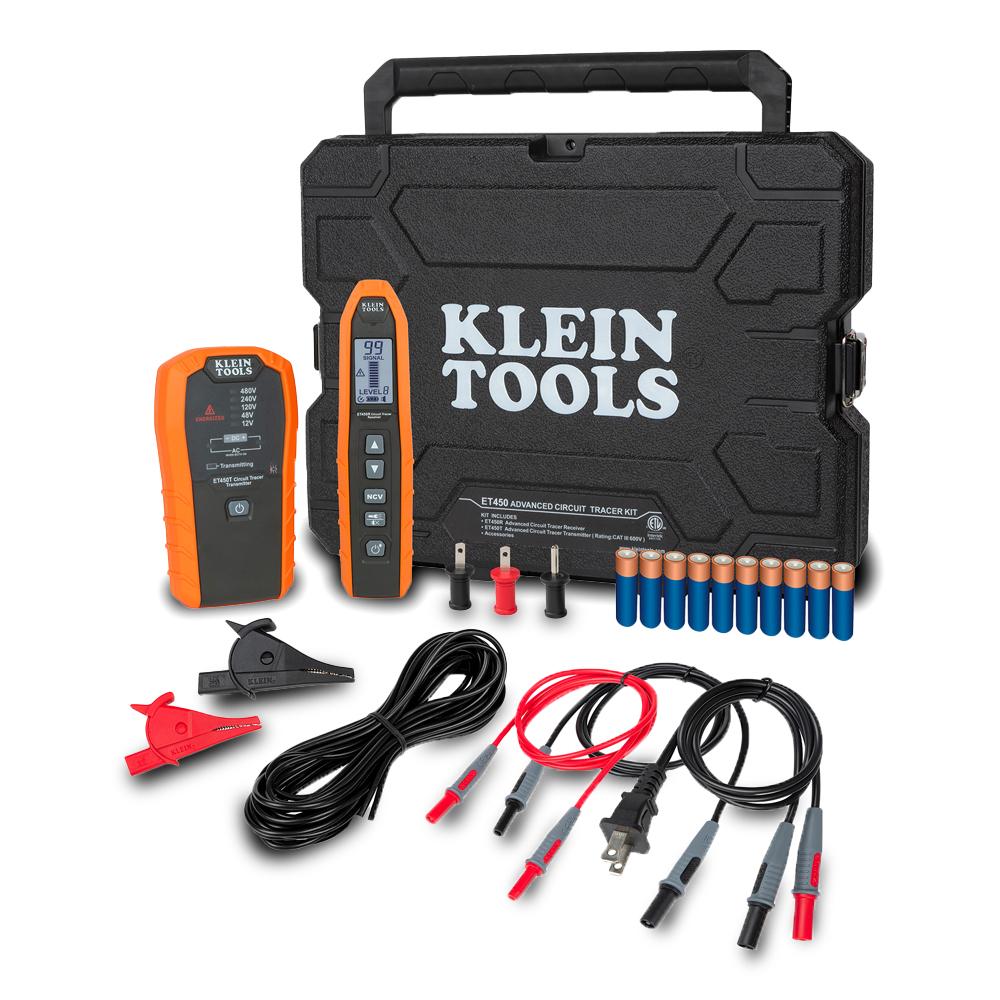

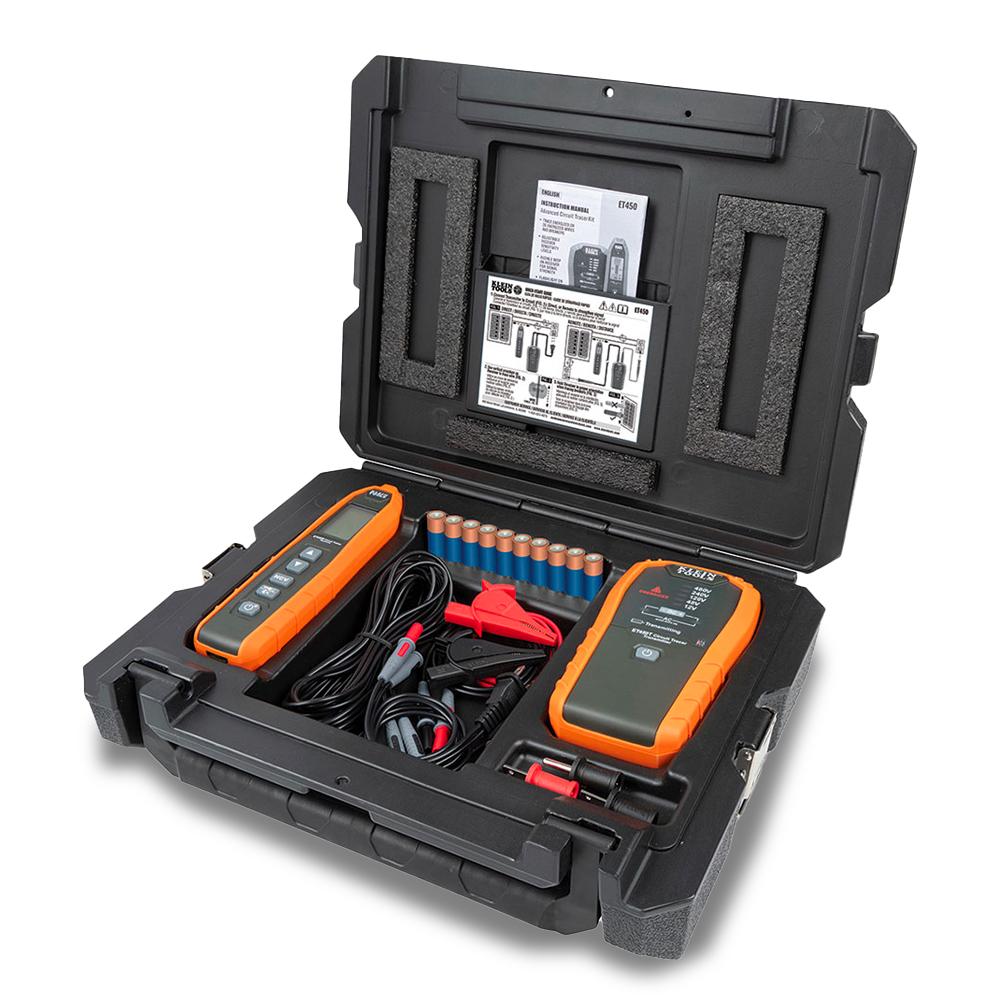

Includes:

• 1 x Transmitter
• 1 x Receiver
• 1 x Blade
• 1 x Ground Prongs
• 1 x Alligator Clips
• 1 x 3 Foot lead adapter
• 1 x 20 Foot lead adapter
• 1 x AC plug lead
• 6 × 1.5V AA Alkaline batteries
• 4 × 1.5V AA Alkaline baatteries
• 1 x Hard carrying case with handle for convenient transportation and storage

Features:

• Reliable tracing of energized or non-energized breakers, fuses, and wires
• Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
• Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
• Audible beep and visual indicators on receiver denotes signal strength
• Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized
• Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V

Specifications:

• Ingress Protection: IP42
• Voltage: External Indicators for 12V, 48V, 120V, 240V, and 480V
• Battery Life: Up to 24 hours
• Lead Length: 3' (1m) and 20' (6.1m)
• Frequency:
  • Transmitter: AC 45Hz to 65Hz
  • Receiver: 33kHz
