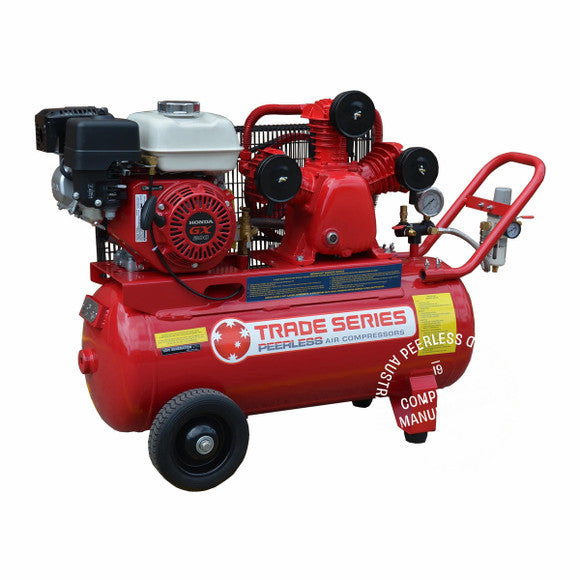

Peerless TS20P - Petrol Air Compressor - Belt Drive - Honda GX200 325LPM Trade Series

The "Trade Series" TS20P is a mid tier Honda petrol air compressor when you put it up against the Peerless P17 Honda petrol model. But in saying so, it does deliver 325 litres of air per minute at 100PSI, fitted on a 70L pressure vessel. Removable handle makes it easy to store in a confined space, with a regulator mounting point on the handle. Solid wheels and a wire belt guard compared to metal cased, makes this the mid tier in comparison.

If you're looking at just mounting to the ground, it will sit flat without the wheels. Standard metal intake filters with replicable element cartridges.

Specfications

• Model: TS20P
• Pump Displacement (CFM): 17 CFM
• Free Air Delivery (LPM): 325 LPM
• Max PSI: 145
• Motor HP: GX200
• Warranty Pump: 3 Years
• Warranty Motor: 1 Year
• Tank Capacity: 70L
• Pump up time to 100PSI: -
• Dimensions (mm): 1100L x 450W x 820H
• Weight (kg): 95kg
• Cooling method: Air cooled
• Pump type: PB40
• Cylinders: 3
• Pump head tension: 16 FT LB 22.4NM
• Oil capacity: 1.35L
• Pump RPM: 880
• Outlet thread: 1/4"BSP
• Motor: Honda GX200

TS20P Brochure
