SKU:RT40YB75-3.6Q
Couldn't load pickup availability

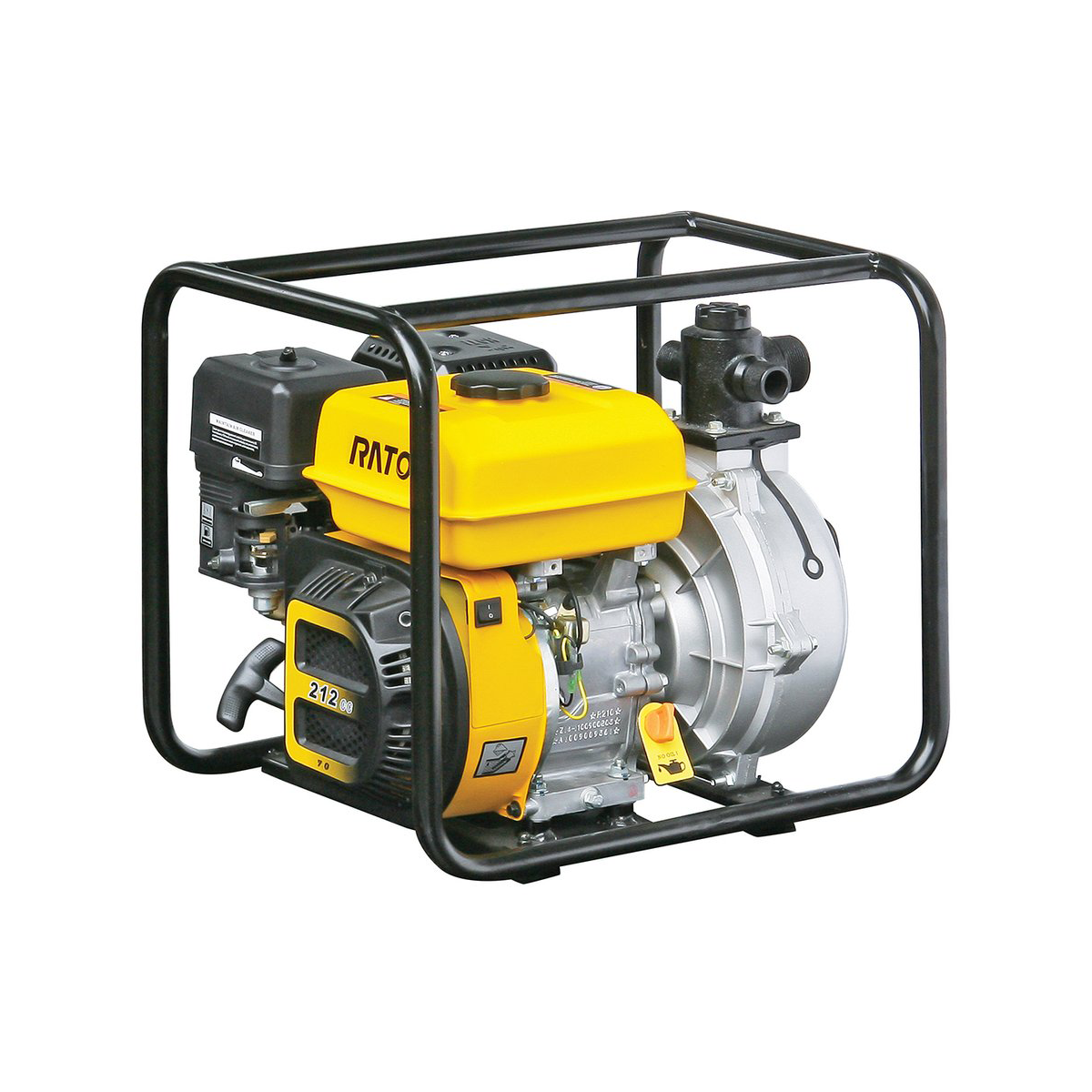

Introducing the RATO RT40YB75-3.6Q twin impeller high pressure pump to the JAK Max product range.
The RATO RT40YB75-3.6Q 7hp high pressure pump is perfect for all your pumping needs. It is ideal for irrigation, orchard water supplies, heavy duty cleaning, fire fighting and long distance, high pressure water supply. This pump has a suction port diameter of 1.5” and is ideal for pumping water up a hill.
Covered by our 2 year/500 hour domestic warranty.
| Bore x Stroke |
68 x 54mm |
|---|---|
| Displacement |
196ml |
| Compression Ratio |
9 : 1 |
| Net Power |
4.2kw / 3600rpm |
| Fuel Consumption |
≤395 (g/kw-h) |
| Net Torque |
11N.m / 2500rpm |
| Pump Set |
1.5" high life pump |
| Suction Port Diameter |
38mm (1.5") |
| Discharge Port Diameter |
1.5" / 1" / 1" |
| Suction Head Lift |
7m |
| Total Head Lift |
75m |
| Discharge Capacity |
12m3/h / 200 litres per minute |
| Dimensions (L x W x H mm) |
500 x 395 x 446 |
| Net Weight |
28.5kg |
