Wattmaster 6,000Kg (6T) Battery Crimper Kit - ALCCT-6/KIT

Wattmaster 6,000Kg (6T) Battery Crimper Kit - ALCCT-6/KIT

ALCCT-6/KIT

$2,995.00 AUD
$6,995.00 AUD $2,995.00 AUD
Sold out
Taxes included. Shipping calculated at checkout.

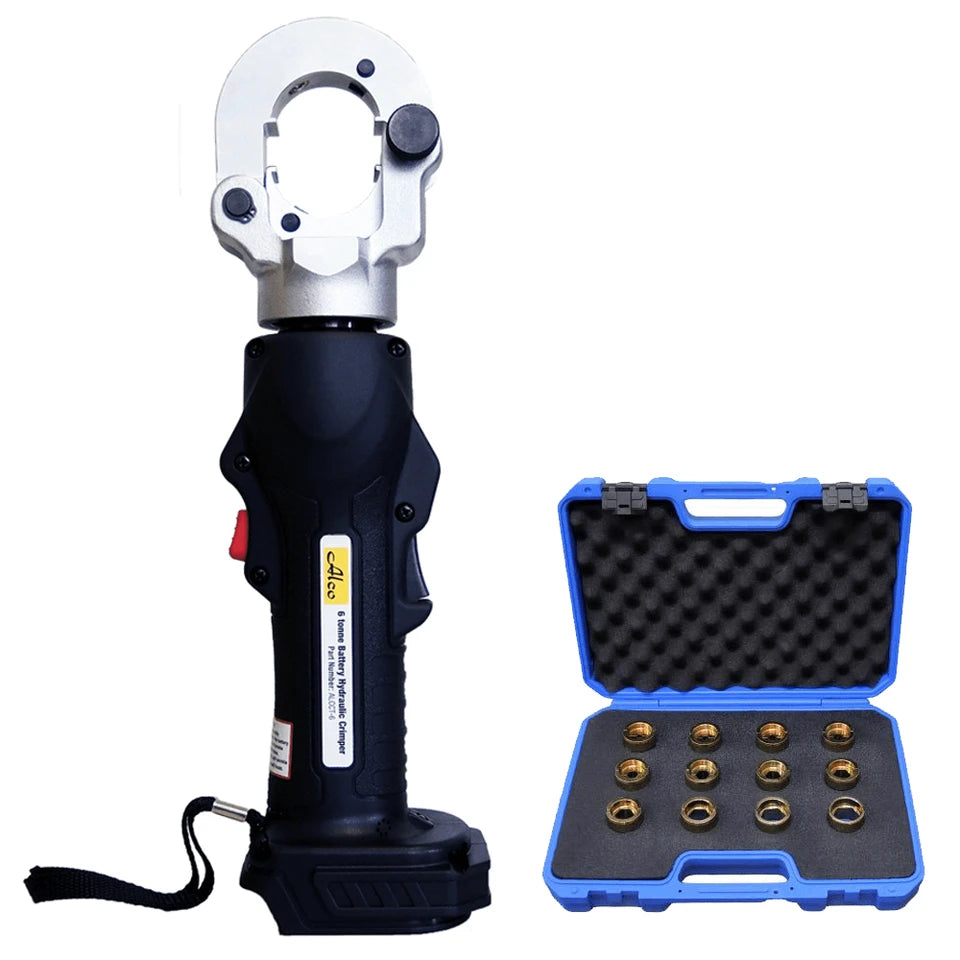

Wattmaster 6,000Kg (6T) Battery Crimper Kit

These 6 Tonne Battery Crimper Kits are suitable for crimping in narrow working spaces & offer a crimping capacity of 300mm² (CU)/300mm² (AL).

Kit Includes

1x Alco 12 Piece 6,000Kg (6T) Copper Die Kit For Hexagonal Crimping (ALCK6-DIEKIT)

12 Piece 6,000Kg Hexagonal Cable Crimping Die Set - 10mm-300mm

This Alco 12 Piece 6,000Kg Copper Die Kit from Wattmaster is designed for hexagonal crimping of cables, with dies ranging from 10mm up to 300mm.

Includes:

12 x 6,000Kg Copper Dies For:

  • 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm & 300mm cables




Part No. Crimping Size (mm²) A/F (mm) Width (mm) Type
ALCK6-C10 10 - - Copper
ALCK6-C16 16 - - Copper
ALCK6-C25 25 7.7 12.0 Copper
ALCK6-C35 35 9.2 12.0 Copper
ALCK6-C50 50 10.4 9.0 Copper
ALCK6-C70 70 11.5 9.0 Copper
ALCK6-C95 95 14.2 6.0 Copper
ALCK6-C120 120 16.5 6.0 Copper
ALCK6-C150 150 18.3 5.0 Copper
ALCK6-C185 185 20.0 5.0 Copper
ALCK6-C240 240 23.1 5.0 Copper
ALCK6-C300 300 26.0 5.0 Copper

Features & Benefits

  • 6,000Kg
  • Copper Dies
  • Contains 12 Crimp Sizes
  • Hexagonal Crimping Of Cable
  • Convenient Carry Case
  • 1x Battery Adaptor Makita to DeWALT (ALCBAMKDW)
  • 1x Battery Adaptor Makita to Milwaukee (ALCBAMKMW)


Features & Benefits

  • Flip open head with 180° opening
  • Suitable for crimping in narrow working spaces
  • Super quick, light weight & easy to operate.
  • Built in safety valve, automatic pressure-relief at Max. pressure.
  • Built-in microchip controller, more crimping times with one time charge, protect the device body.
  • Crimping head rotates 360 degrees, suitable for different angles.
  • Battery not included
  • Uses 18V Lithium Ion Makita battery directly


Specifications

Head type Flip Top
Crimping force 6 Tonne
Rated Pressure 720 bar
Crimping capacity 300mm² (CU)/240mm² (AL)
Weight 3.1 kg
